Portable Cell Phone Antenna , High Gain Indoor Mobile Phone Antenna Wireless Wifi Antenna

China Portable Cell Phone Antenna , High Gain Indoor Mobile Phone Antenna Wireless Wifi Antenna supplier

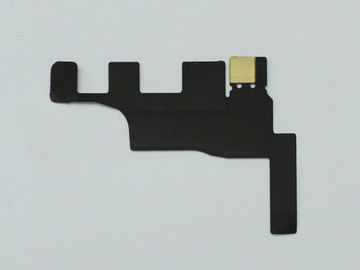

Large Image :  Portable Cell Phone Antenna , High Gain Indoor Mobile Phone Antenna Wireless Wifi Antenna

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: BOGES
Certification: ISO9001,RoHs
Model Number: BGS-SM3000-xxxx-L

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE Bag/Carton
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 20K per day
Contact Now
Detailed Product Description
Frequency: 2.4G ~2.5 GHz; 1575.42 MHz; 800~ 2700 MHz Impedance: 50 OHM
S.W.R: 2.5 Max. Efficiency: 35 ~ 75%
Material: FPC
High Light:

external cell phone antenna

,

cell phone wifi antenna

High Gain Indoor Mobile Phone Antenna Wireless Wifi Antenna , Portable





Detail Product Description



Frequency: 2.4G ~2.5 GHz; 1575.42 MHz; 800~ 2700 MHz

S.W.R: 2.5 MAX

Impedance: 50 ohm

Efficiency: 35% ~ 75%

Material: FPC





Application:

  1. Smart Phone

  2. POS Machine

  3. GSM / CDMA / 3G Mobile Phone System

Detail Specification:



Layers No. 1 - 6 layers
Finished Board Size Min.:4x4mm    Max.:250x1200mm
Board thickness: 0.08-0.12mm for single layer, 0.12-0.22mm for double layer
Available Laminates Material PI.PET,FR4-PI
Finished Board Thickness tol. ±0.03mm
Finished hole diameter(Min.) 0.2mm
Finished hole diameter(Max) 0.6mm
NPTH Hole diameter tolerance ±0.025mm
PTH hole diameter tolerance ±0.050mm
Copper foil thickness 18um,35um,70um
Circuit width/spacing(Min.) ≥0.065mm(1/2oz)≥0.05mm(1/3oz)
Surface Finished type OSP.Gold plating,Immersion Gold,Tin plating(lead free)etc
Gold Flash Ni/Au thickness Ni:2.54-9um  Au:0.025-0.5um
Immersion Tin thickness 0.7-1.2um
Tin plating thickness 3-15um
Drill hole position tolerance ±0.05mm
Punching dimension tolerance ±0.05mm
Certificate ROHS,UL,ISO9001 etc
