Product Details:
Payment & Shipping Terms:
|
| Frequency: | 806-960/1710-2700 MHz | Impedance: | 50 OHM |
|---|---|---|---|
| S.W.R: | 2.0 Max. | Gain: | 3 DBi |
| High Light: | external cell phone antenna,wireless internet antenna |
||
Electrical Characteristics
Frequency: 806-960/1710-2700 MHz
Gain: 3 +/- 1 dBi
Horizontal Beamwidth: 360 ˚
Vertical Beamwidth: 70+/-10 ˚
V.S.W.R: 2.0:1 Max.
Polarization: Vertical
Impedance: 50 OHM
Max. Power: 50W
Lightning protection: DC Groud
Material & Mechanical Characteristics

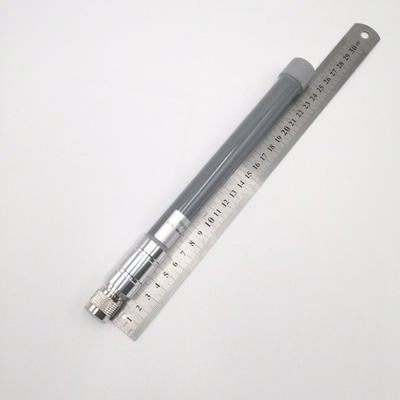

Dimension: Φ20*250mm

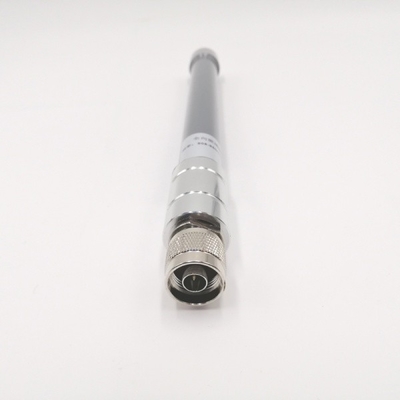

Connector: N Connector
Weight: 0.3Kg
Rated Wind Velocity: 36.9m/s
Environmental
Operation Humidity: <95%
Operation Temperature: - 40 ˚C ~ + 65 ˚C
Storage Temperature: - 40 ˚C ~ + 80 ˚C
