Detailed Product Description

Frequency:	13.56MHZ	Impedance:	50 OHM
S.W.R:	2.5 Max.	Efficiency:	35 ~ 75%
Material:	FPC
High Light:	external cell phone antenna , wireless internet antenna

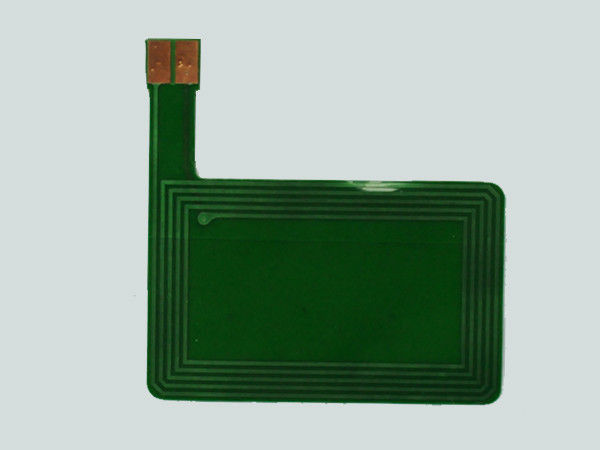

NFC Cell Phone Antenna Frequency 13.56Mhz

Detail Product Description

Frequency: 13.56MHZ

S.W.R: 2.5 MAX

Impedance:　50 ohm

Efficiency: 35% ~ 75%

Material: FPC

Detail Specification:

Layers No.	1 - 6 layers
Finished Board Size	Min.:4x4mm Max.:250x1200mm
Board thickness:	0.08-0.12mm for single layer, 0.12-0.22mm for double layer
Available Laminates Material	PI.PET,FR4-PI
Finished Board Thickness tol.	±0.03mm
Finished hole diameter(Min.)	0.2mm
Finished hole diameter(Max)	0.6mm
NPTH Hole diameter tolerance	±0.025mm
PTH hole diameter tolerance	±0.050mm
Copper foil thickness	18um,35um,70um
Circuit width/spacing(Min.)	≥0.065mm(1/2oz)≥0.05mm(1/3oz)
Surface Finished type	OSP.Gold plating,Immersion Gold,Tin plating(lead free)etc
Gold Flash Ni/Au thickness	Ni:2.54-9um Au:0.025-0.5um
Immersion Tin thickness	0.7-1.2um
Tin plating thickness	3-15um
Drill hole position tolerance	±0.05mm
Punching dimension tolerance	±0.05mm
Certificate	ROHS,UL,ISO9001 etc
