Product Details:
Payment & Shipping Terms:
|
| Frequency: | 1575MHz | Impedance: | 50 OHM |
|---|---|---|---|
| S.W.R: | 1.5 Max. | Return Loss: | >=10 DB |
| Connector: | I-PEX 20278-112R-13 | Ceramic: | 10*10*6mm |
| High Light: | vehicle gps antenna,gps internal antenna |
||

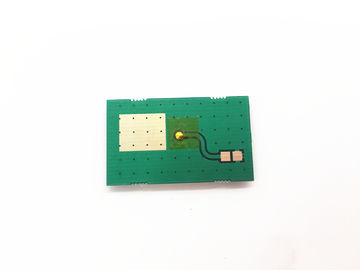

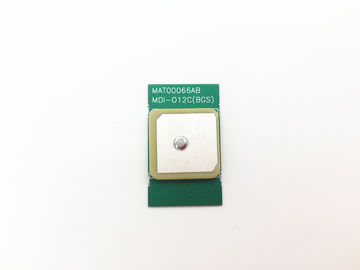

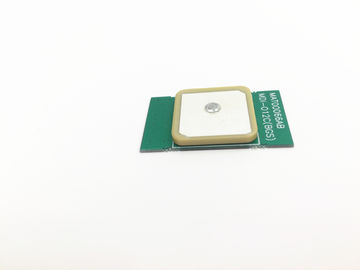

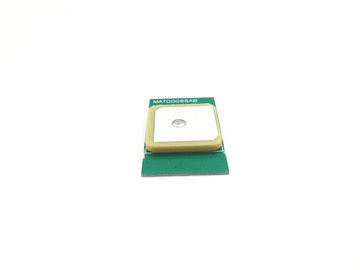

10*10*6 mm Ceramic GPS Active Patch Antenna Frequency 1575 MHz
1. Object
Customized GPS antenna.
2. Electrical Characteristics
|
No. |
Item |
Specifications |
Post Environmental Tolerance |
|
2.1 |
Range of Receiving Frequency (Mhz) |
1575 |
±2.5 |
|
2.2 |
Center Frequency (Mhz) (with D01 GND Plane) |
1590 |
±3.0 |
|
2.3 |
Band With (Mhz) (Return loss ≤-10dB) |
≥5 |
±0.5 |
|
2.4 |
V.S.W.R(in Center Frequency) |
≤1.5 |
±0.5 |
|
2.5 |
Gain(Zenith) (dBi typ) |
―― |
―― |
|
2.6 |
Axial Ratio |
―― |
—— |
|
2.7 |
Polarization |
Right-Handed Circular |
—— |
|
2.8 |
Impedance(Ω) |
50 |
—— |
|
2.9 |
Frequency Temperature Coefficient (ppm/℃) |
0±10 |
—— |
3. Characteristic curve
