Custom Car GPS Antenna Frequency 1575MHz , GPS Active Patch Antenna

China Custom Car GPS Antenna Frequency 1575MHz , GPS Active Patch Antenna supplier
Custom Car GPS Antenna Frequency 1575MHz , GPS Active Patch Antenna supplier Custom Car GPS Antenna Frequency 1575MHz , GPS Active Patch Antenna supplier

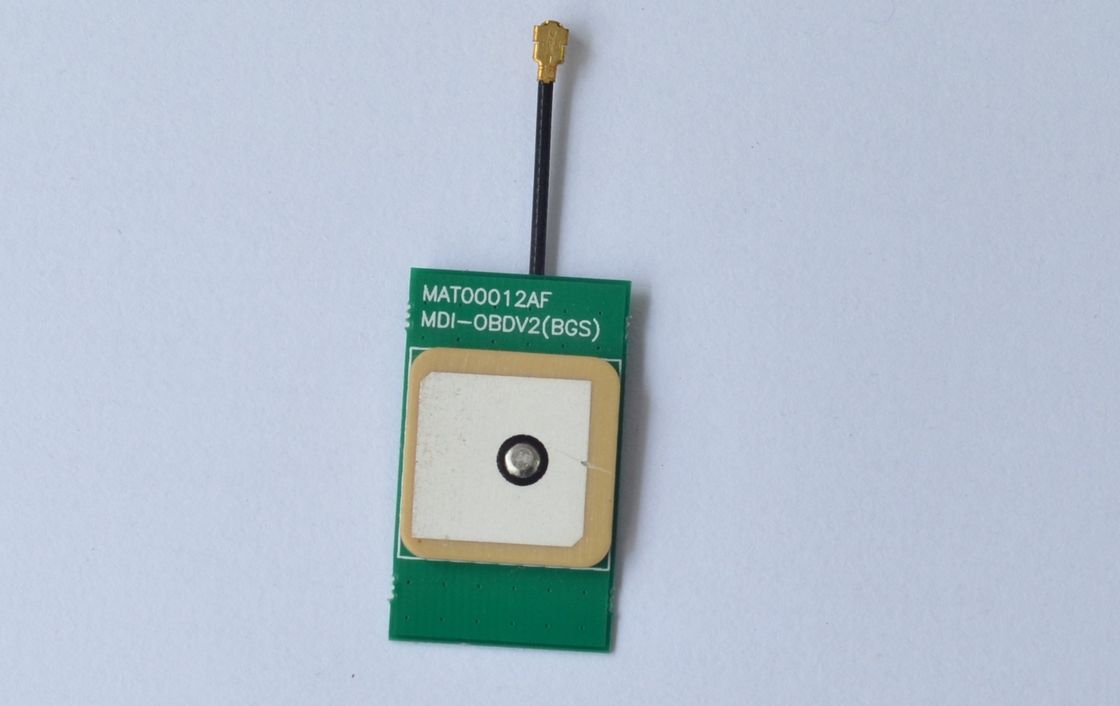

Large Image :  Custom Car GPS Antenna Frequency 1575MHz , GPS Active Patch Antenna

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: BOGES
Certification: ISO9001,RoHs
Model Number: BGS-MM1575-1932-L

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE Bag/Carton
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 20K per day
Contact Now
Detailed Product Description
Frequency: 1575.42 MHz Impedance: 50 OHM
S.W.R: 1.5 Max. Return Loss: >=10 DB
Connector: UFL Connector Cable: RF 1.13 Cable
High Light:

vehicle gps antenna

,

gps internal antenna

Custom Car GPS Antenna Frequency 1575MHz , GPS Active Patch Antenna





1. Object



   OBD V4(C4+OBD DONGLE) GPS antenna.



2.  Electrical Characteristics



No.

Item

Specifications

Post Environmental Tolerance

2.1

Range of Receiving Frequency (Mhz)

1575

±2.5

2.2

Center Frequency (Mhz)

(with D01 GND Plane)

1590

±3.0

2.3

Band With (Mhz)

(Return loss ≤-10dB)

≥5

±0.5

2.4

V.S.W.R(in Center Frequency)

≤1.5

±0.5

2.5

Gain(Zenith) (dBi typ)

――

――

2.6

Axial Ratio

――

——

2.7

Polarization

Right-Handed Circular

——

2.8

Impedance(Ω)

50

——

2.9

Frequency Temperature Coefficient

(ppm/℃)

0±10

——















































3. Characteristic curve



Custom Car GPS Antenna Frequency 1575MHz , GPS Active Patch Antenna
