Product Details:
Payment & Shipping Terms:
|
| Frequency: | 2400 ~ 2500 MHz | S.W.R: | 1. 4max |
|---|---|---|---|
| Impedance: | 50Ohm | Working Temp: | -40'C To +90'C |
| Cable: | RF 1.13 Cable | Connector: | UFL Connector |
| High Light: | wifi router antenna,bluetooth external antenna |
||

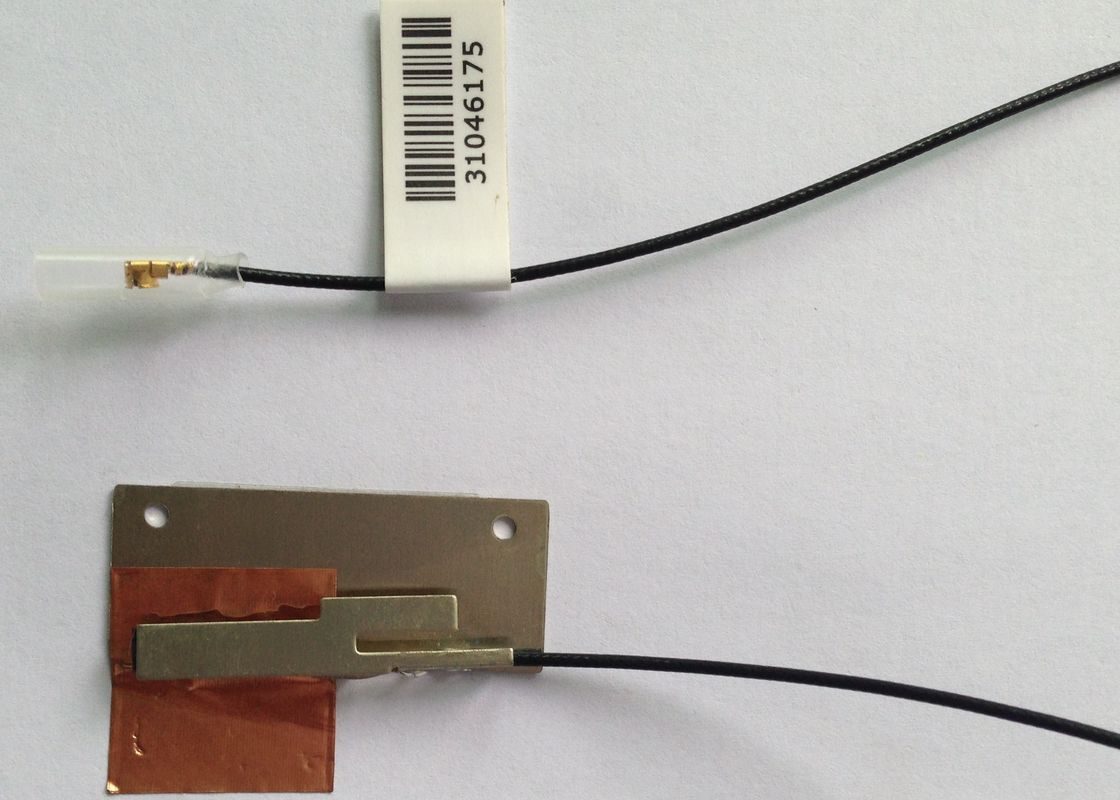

WIFI Bluetooth Antenna With UFL connector
FEATURES AND BENEFITS
1. Easy snap-on/snap-off mating
2. Ultra low profile (2.5 mm mating height)
3. Small foot print (3mm x 3mm)
4. 100% compatible with Hirose U.FL series
APPLICATIONS
1. WLAN
2. Notebook Computers
3. Remote Measuring Equipment
4. Bluetooth
6. Personal Digital Assistant (PDA)
7. Portable Devices
SPECIFICATIONS
|
Electrical |
|
|
Impedance |
50 Ohm |
|
Frequency Range |
DC - 6 GHz |
|
VSWR |
|
|
DC - 3 GHz |
1.3 max |
|
2 - 6 GHz |
1.4 max |
|
Contact Resistance |
|
|
Center Contact |
≤20 mohm |
|
Outer Contact |
≤10 mohm |
|
Environmental |
|
|
Temperature Range |
-40'C to +150'C |
|
Mechanical |
|
|
Mating |
Snap-on coupling |
|
Center Contact Retention Force |
0.15 N |
|
Connector Durability (Mating) |
30 mating cycles min |
