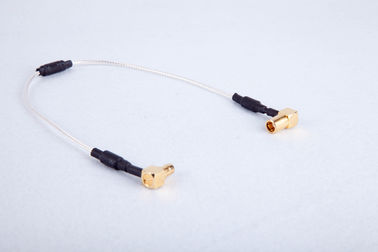

SMB Extension Cable RG316 RF Cable Assembly for Wireless Industries

China SMB Extension Cable RG316 RF Cable Assembly for Wireless Industries supplier
SMB Extension Cable RG316 RF Cable Assembly for Wireless Industries supplier SMB Extension Cable RG316 RF Cable Assembly for Wireless Industries supplier SMB Extension Cable RG316 RF Cable Assembly for Wireless Industries supplier SMB Extension Cable RG316 RF Cable Assembly for Wireless Industries supplier

Large Image :  SMB Extension Cable RG316 RF Cable Assembly for Wireless Industries

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: BOGES
Certification: RoHs
Model Number: BGS-SMB-316-SMB-L

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE Bag / Carton
Delivery Time: 15 Days
Supply Ability: 10K Per Day
Contact Now
Detailed Product Description
Frequency: 0~3 GHz Impedance: 50 OHM
S.W.R: 2.0 Max. Cable: RG316 Cable, Brown
Connector: SMB Connector
High Light:

rf coaxial cable

,

custom rf cable assemblies



SMB Extension Cable RG316 RF Cable Assembly for Wireless Industries



Application:



1. Wireless industries

2. Communication equipment

3. Base stations

4. Telecom

5. Test and measurement



Detail Product Description



Frequency: 0 ~3 GHz

S.W.R: 2.0 Max.

Impedance: 50 ohm

Cable: RG 316 Cable, Brown

Connector: SMB







Specification



A. Electrical Characteristics

Frequency

DC~3GHz

Impedance

50 ohm

S.W.R

2.0 MAX @ 0~3GHz

Return Loss

>=10dB

Insertion Loss

<=1.5dB

B. Material & Mechanical Characteristics

Cable Type

RG 316 Cable

Connector Type

SMB Connector

Pull Test

>= 3.0Kg

C. Environmental



Operation Temperature

- 40 ˚C ~ + 65 ˚C

Storage Temperature

- 40 ˚C ~ +80˚C



Characteristics and Reliability Test

Test Items

Test Condition and Procedure

Requirements

C1

S.W.R.

Set DUT on Network Analyzer; make individual calibration to test

Directive DUT specification

M1

Vibration

MIL-STD-202G, 201A

Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz

3 directions; 2 hours for each direction

1. No Visual Damage

2. Frequency Tol.<= 5%

M2

Random

Drop

Height: 1.5 Meter;

3 directions; 1 time for each direction

1. No parts separated

2. Frequency Tol.<= 5%

M3

Solderability

MIL-STD-202G, 210F, cond. A

Solder iron: 350±10°C; Duration: 5 seconds

1. Mounted on PCB

2. No Visual Damage

M4

Terminal-

Pull Test

MIL-STD-202G, 211A, cond. A

Holding with individual specification; force applied

to axis of terminal

1. Directive DUT specification

2. Frequency Tol.<= 5%

M5

Dimension

Inspection of dimension, color, material, package,

surface process

Directive DUT specification

E1

Salt Spray

MIL-STD-202G, 101E, cond. B

Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%;

Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E2

Humidity

MIL-STD-202G, 103B, cond. B

Temp: 40°C; RH: >= 95%; Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E3

Thermal Shock

1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes)

Cycles: 24

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E4

Life (High Temp.)

MIL-STD-202G, 108A, cond. A

Temp: 85°C; Time: 96 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

R1

RoHS

With Reference to IEC 62321:2008 with flow chart

Directive RoHS 2002/95/EC

R2

PFOS

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC

R3

PFOA

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC



Contact Details
Dongguan Boges Communication Technology Co., Ltd

Contact Person: Mrs. christy xiao

Tel: 86-769-85441818

Fax: 86-769-85341818

Send your inquiry directly to us (0 / 3000)
