Micro RF Cable F Female To MCX Female RG 316 Coaxial Cable With Ferrite Core

Good quality 4G LTE Antenna for sales
Good quality 4G LTE Antenna for sales
Many thanks for your kindly supports, sincerely wish have a long cooperation with you in the future.

—— Roger Piltonen

Your products are wonderful and thanks for your best services and helps. Let's move our business forward and have a win-win cooperation together

—— Yaron Wiseman

I'm Online Chat Now

Micro RF Cable F Female To MCX Female RG 316 Coaxial Cable With Ferrite Core

China Micro RF Cable F Female To MCX Female RG 316 Coaxial Cable With Ferrite Core supplier

Large Image :  Micro RF Cable F Female To MCX Female RG 316 Coaxial Cable With Ferrite Core

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: BOGES
Certification: RoHs
Model Number: BGS-FF-316-MCX-L

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE Bag / Carton
Delivery Time: 15 Days
Supply Ability: 10K Per Day
Contact Now
Detailed Product Description
Frequency: 0~3 GHz Impedance: 50 OHM
S.W.R: 2.0 Max. Cable: RG 316 Cable Brown
Connector: F Connector Female; MCX Female R/A / Coaxial Cable Assemblies
High Light:

rf coaxial cable

,

custom rf cable assemblies

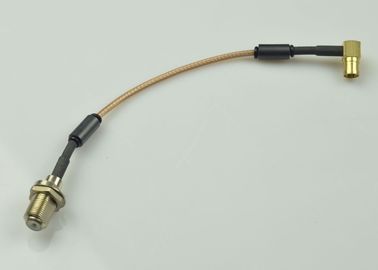

Micro RF Cable F Female To MCX Female RG 316 Coaxial Cable With Ferrite Core





Detail Product Description



Frequency: 0 ~3 GHz

S.W.R: 2.0 Max.

Impedance: 50 ohm

Cable: RG 316 Cable, Brown

Connector: F Connector Female; MCX Connector Female Right Angle





Application:



1. Wireless industries

2. Communication equipment

3. Base stations

4. Telecom

5. Test and measurement





Specification



A. Electrical Characteristics

Frequency

DC ~ 3 GHz

Impedance

50 ohm

S.W.R

2.0 MAX @ 0~1GHz

Return Loss

>=10dB

Insertion Loss

<=1.5dB

B. Material & Mechanical Characteristics

Cable Type

RG 316 Cable

Connector Type

F Connector Female, MCX Connector Female

Pull Test

>= 3.0Kg

C. Environmental



Operation Temperature

- 40 ˚C ~ + 65 ˚C

Storage Temperature

- 40 ˚C ~ +80˚C



Characteristics and Reliability Test

Test Items

Test Condition and Procedure

Requirements

C1

S.W.R.

Set DUT on Network Analyzer; make individual calibration to test

Directive DUT specification

M1

Vibration

MIL-STD-202G, 201A

Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz

3 directions; 2 hours for each direction

1. No Visual Damage

2. Frequency Tol.<= 5%

M2

Random

Drop

Height: 1.5 Meter;

3 directions; 1 time for each direction

1. No parts separated

2. Frequency Tol.<= 5%

M3

Solderability

MIL-STD-202G, 210F, cond. A

Solder iron: 350±10°C; Duration: 5 seconds

1. Mounted on PCB

2. No Visual Damage

M4

Terminal-

Pull Test

MIL-STD-202G, 211A, cond. A

Holding with individual specification; force applied

to axis of terminal

1. Directive DUT specification

2. Frequency Tol.<= 5%

M5

Dimension

Inspection of dimension, color, material, package,

surface process

Directive DUT specification

E1

Salt Spray

MIL-STD-202G, 101E, cond. B

Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%;

Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E2

Humidity

MIL-STD-202G, 103B, cond. B

Temp: 40°C; RH: >= 95%; Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E3

Thermal Shock

1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes)

Cycles: 24

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E4

Life (High Temp.)

MIL-STD-202G, 108A, cond. A

Temp: 85°C; Time: 96 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

R1

RoHS

With Reference to IEC 62321:2008 with flow chart

Directive RoHS 2002/95/EC

R2

PFOS

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC

R3

PFOA

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC



Contact Details
Dongguan Boges Communication Technology Co., Ltd

Contact Person: Mrs. christy xiao

Tel: 86-769-85441818

Fax: 86-769-85341818

Send your inquiry directly to us (0 / 3000)
