RoHs 50 OHM WIFI Bluetooth External Antenna FPC Design With RF 1.13 Cable

China RoHs 50 OHM WIFI Bluetooth External Antenna FPC Design With RF 1.13 Cable supplier

Large Image :  RoHs 50 OHM WIFI Bluetooth External Antenna FPC Design With RF 1.13 Cable

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: BOGES
Certification: RoHs
Model Number: BGS-NB2400-113-1228-L

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE Bag / Carton
Delivery Time: 15 Days
Supply Ability: 10K Per Day
Contact Now
Detailed Product Description
Frequency: 2400 ~ 2500 MHz S.W.R: 1.5 Max.
Impedance: 50 OHM Return Loss: >=10 DB
Cable: RF 1.13 Cable Connector: Pigtail
High Light:

outdoor wifi antenna

,

wifi router antenna

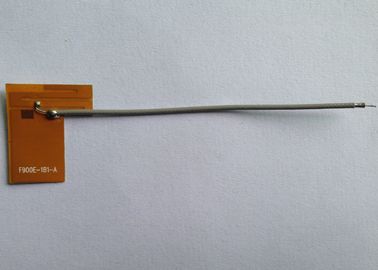

WIFI Bluetooth Antenna FPC Design With RF 1.13 Cable





Detail Product Description



Frequency: 2400 ~ 2500 MHz

S.W.R: 1.5 MAX

Impedance: 50 ohm

Cable: RF 1.13 Cable

Connector: Pigtail



Application:



1. Notebook PC WLAN

2. PAD



Specification



A. Electrical Characteristics

Frequency

2400 ~ 2500 MHz

Impedance

50 ohm

S.W.R

1.5 MAX

Return Loss

>=10dB

Insertion Loss

<=1.5dB

B. Material & Mechanical Characteristics

Cable Type

RF 1.13 Cable

Connector Type

Pigtail

Pull Test

>= 1.0Kg

C. Environmental



Operation Temperature

- 40 ˚C ~ + 65 ˚C

Storage Temperature

- 40 ˚C ~ +80˚C



Characteristics and Reliability Test

Test Items

Test Condition and Procedure

Requirements

C1

S.W.R.

Set DUT on Network Analyzer; make individual calibration to test

Directive DUT specification

M1

Vibration

MIL-STD-202G, 201A

Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz

3 directions; 2 hours for each direction

1. No Visual Damage

2. Frequency Tol.<= 5%

M2

Random

Drop

Height: 1.5 Meter;

3 directions; 1 time for each direction

1. No parts separated

2. Frequency Tol.<= 5%

M3

Solderability

MIL-STD-202G, 210F, cond. A

Solder iron: 350±10°C; Duration: 5 seconds

1. Mounted on PCB

2. No Visual Damage

M4

Terminal-

Pull Test

MIL-STD-202G, 211A, cond. A

Holding with individual specification; force applied

to axis of terminal

1. Directive DUT specification

2. Frequency Tol.<= 5%

M5

Dimension

Inspection of dimension, color, material, package,

surface process

Directive DUT specification

E1

Salt Spray

MIL-STD-202G, 101E, cond. B

Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%;

Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E2

Humidity

MIL-STD-202G, 103B, cond. B

Temp: 40°C; RH: >= 95%; Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E3

Thermal Shock

1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes)

Cycles: 24

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E4

Life (High Temp.)

MIL-STD-202G, 108A, cond. A

Temp: 85°C; Time: 96 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

R1

RoHS

With Reference to IEC 62321:2008 with flow chart

Directive RoHS 2002/95/EC

R2

PFOS

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC

R3

PFOA

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC



S Parameter Test Data
