Rotation WIFI Omni Antenna 2.4 GHz 2dB S.W.R 2.0 Max Black SMA Male Connector

China Rotation WIFI Omni Antenna 2.4 GHz 2dB S.W.R 2.0 Max Black SMA Male Connector supplier
Rotation WIFI Omni Antenna 2.4 GHz 2dB S.W.R 2.0 Max Black SMA Male Connector supplier Rotation WIFI Omni Antenna 2.4 GHz 2dB S.W.R 2.0 Max Black SMA Male Connector supplier

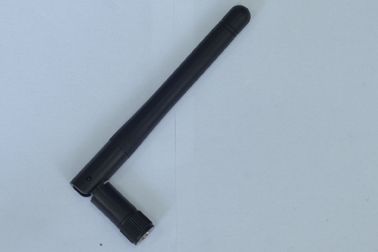

Large Image :  Rotation WIFI Omni Antenna 2.4 GHz 2dB S.W.R 2.0 Max Black SMA Male Connector

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: BOGES
Certification: RoHs
Model Number: BGS-AN2400-101109B

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE Bag / Carton
Delivery Time: 10 Days
Supply Ability: 20K Per Day
Contact Now
Detailed Product Description
Frequency: 2400 ~ 2500 MHz S.W.R: 2.0 Max.
Impedance: 50 OHM Peak Gain: 2 DB
Connector: RP-SMA Male; SMA Male
High Light:

external wifi antenna

,

WIFI external antenna

Vertical Single Monopole And Dipole Antenna 2.4 GHz 2dB Black SMA Male Connector





Detail Product Description



Frequency: 2400 ~ 2500 MHz

S.W.R: 2.0 MAX

Impedance: 50 ohm

Peak Gain: 2 dB

Connector: RP-SMA Male; SMA Male.



Application:



1. Wi-Fi /WLAN /MEMO /Bluetooth System

2. Router

3. IEEE802.11 WLAN System

4. Wireless Communication System



Specification





A. Electrical Characteristics

Frequency

2400 ~ 2500 MHz

Impedance

50 ohm

S.W.R

2.0 Max.

Peak Gain

2 dB

Return Loss

>= 10 dB

B. Material & Mechanical Characteristics

Cable Type

RF 1.37

Connector Type

 RP-SMA Male; SMA Male

Body

ABS, Black

C. Environmental



Operation Temperature

- 40 ˚C ~ + 65 ˚C

Storage Temperature

- 40 ˚C ~ +80˚C





Characteristics and Reliability Test



Test Items

Test Condition and Procedure

Requirements

C1

S.W.R.

Set DUT on Network Analyzer; make individual calibration to test

Directive DUT specification

M1

Vibration

MIL-STD-202G, 201A

Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz

3 directions; 2 hours for each direction

1. No Visual Damage

2. Frequency Tol.<= 5%

M2

Random

Drop

Height: 1.5 Meter;

3 directions; 1 time for each direction

1. No parts separated

2. Frequency Tol.<= 5%

M3

Solderability

MIL-STD-202G, 210F, cond. A

Solder iron: 350±10°C; Duration: 5 seconds

1. Mounted on PCB

2. No Visual Damage

M4

Terminal-

Pull Test

MIL-STD-202G, 211A, cond. A

Holding with individual specification; force applied

to axis of terminal

1. Directive DUT specification

2. Frequency Tol.<= 5%

M5

Dimension

Inspection of dimension, color, material, package,

surface process

Directive DUT specification

E1

Salt Spray

MIL-STD-202G, 101E, cond. B

Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%;

Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E2

Humidity

MIL-STD-202G, 103B, cond. B

Temp: 40°C; RH: >= 95%; Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E3

Thermal Shock

1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes)

Cycles: 24

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E4

Life (High Temp.)

MIL-STD-202G, 108A, cond. A

Temp: 85°C; Time: 96 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

R1

RoHS

With Reference to IEC 62321:2008 with flow chart

Directive RoHS 2002/95/EC

R2

PFOS

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC

R3

PFOA

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC



S Parameter Test Data

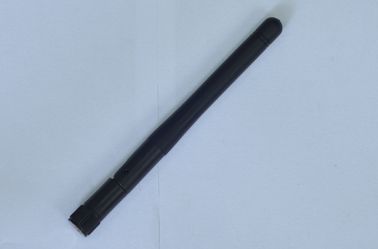

Rotation WIFI Omni Antenna 2.4 GHz 2dB S.W.R 2.0 Max Black SMA Male Connector
