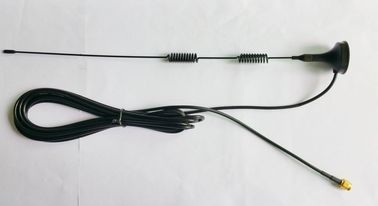

Indoor GSM Magnetic Mount Antenna Impedance 50 OHM With SMA Connector

China Indoor GSM Magnetic Mount Antenna Impedance 50 OHM With SMA Connector supplier

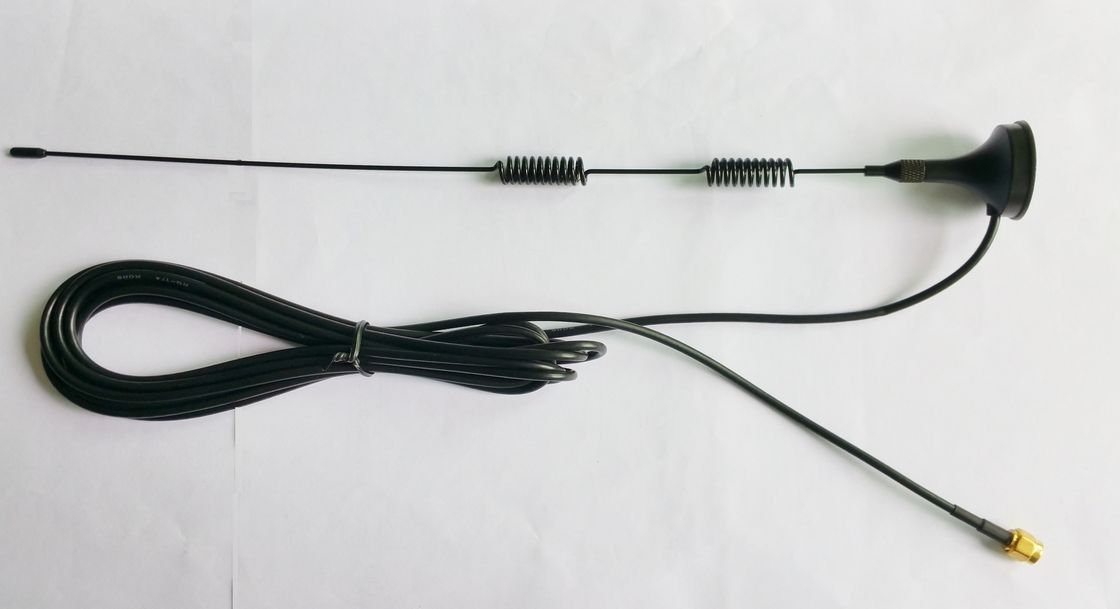

Large Image :  Indoor GSM Magnetic Mount Antenna Impedance 50 OHM With SMA Connector

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: BOGES
Certification: ISO9001,RoHs
Model Number: BGS-3000-2738B-L

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE Bag/Carton
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 20K per day
Contact Now
Detailed Product Description
Frequency: 850-1900 MHz; 900-1800 MHz S.W.R: 1.5 Max.
Cable: RG 174 Cable Black Connector: SMA Connector Male
Gain: 5.0 DBi Polarization: Vertical
High Light:

magnetic mount cb antenna

,

magnetic radio antenna

GSM Magnetic Mount Antenna Impedance 50 OHM With SMA Connector




Detail Product Description



Frequency: 850-1900 MHz; 900-1800 MHz

S.W.R: 1.5MAX

Impedance: 50 ohm

Peak Gain: 5dB

Cable: RG174 Cable

Connector: SMA Male





Application:

  1. Vehicle system
  2. Digital TV system

Intelligent electric meter





Specification



A. Electrical Characteristics

Frequency

850-1900 MHz; 900-1800 MHz

Impedance

50 ohm

S.W.R

1.5 MAX

Return Loss

>=10dB

Insertion Loss

<=1.5dB

B. Material & Mechanical Characteristics

Cable Type

RG174 Cable

Connector Type

SMA Male

Pull Test

>= 3.0Kg

C. Environmental



Operation Temperature

- 40 ˚C ~ + 65 ˚C

Storage Temperature

- 40 ˚C ~ +80˚C





Characteristics and Reliability Test



Test Items

Test Condition and Procedure

Requirements

C1

S.W.R.

Set DUT on Network Analyzer;

make individual calibration to test

Directive DUT specification

M1

Vibration

MIL-STD-202G, 201A

Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz

3 directions; 2 hours for each direction

1. No Visual Damage

2. Frequency Tol.<= 5%

M2

Random

Drop

Height: 1.5 Meter;

3 directions; 1 time for each direction

1. No parts separated

2. Frequency Tol.<= 5%

M3

Solderability

MIL-STD-202G, 210F, cond. A

Solder iron: 350±10°C; Duration: 5 seconds

1. Mounted on PCB

2. No Visual Damage

M4

Terminal-

Pull Test

MIL-STD-202G, 211A, cond. A

Holding with individual specification; force applied

to axis of terminal

1. Directive DUT specification

2. Frequency Tol.<= 5%

M5

Dimension

Inspection of dimension, color, material, package,

surface process

Directive DUT specification

E1

Salt Spray

MIL-STD-202G, 101E, cond. B

Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%;

Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E2

Humidity

MIL-STD-202G, 103B, cond. B

Temp: 40°C; RH: >= 95%; Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E3

Thermal Shock

1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes)

Cycles: 24

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E4

Life (High Temp.)

MIL-STD-202G, 108A, cond. A

Temp: 85°C; Time: 96 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

R1

RoHS

With Reference to IEC 62321:2008 with flow chart

Directive RoHS 2002/95/EC

R2

PFOS

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC

R3

PFOA

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC
