Mobile Base Magnetic Mount Antenna 433 MHz Indoor UHF Digital TV

China Mobile Base Magnetic Mount Antenna 433 MHz Indoor UHF Digital TV supplier

Large Image :  Mobile Base Magnetic Mount Antenna 433 MHz Indoor UHF Digital TV

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: Boges
Certification: ISO9001,RoHs
Model Number: BGS-MM433-27152B-L

Payment & Shipping Terms:

Minimum Order Quantity: 200
Packaging Details: PE Bag/Carton
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 20K per day
Detailed Product Description
Frequency: 433 MHz Impedance: 50 OHM
S.W.R: 2.0 Max. Return Loss: >=10 DB
Connector: SMA Male; RP-SMA Male Cable: RG 174 Cable Black

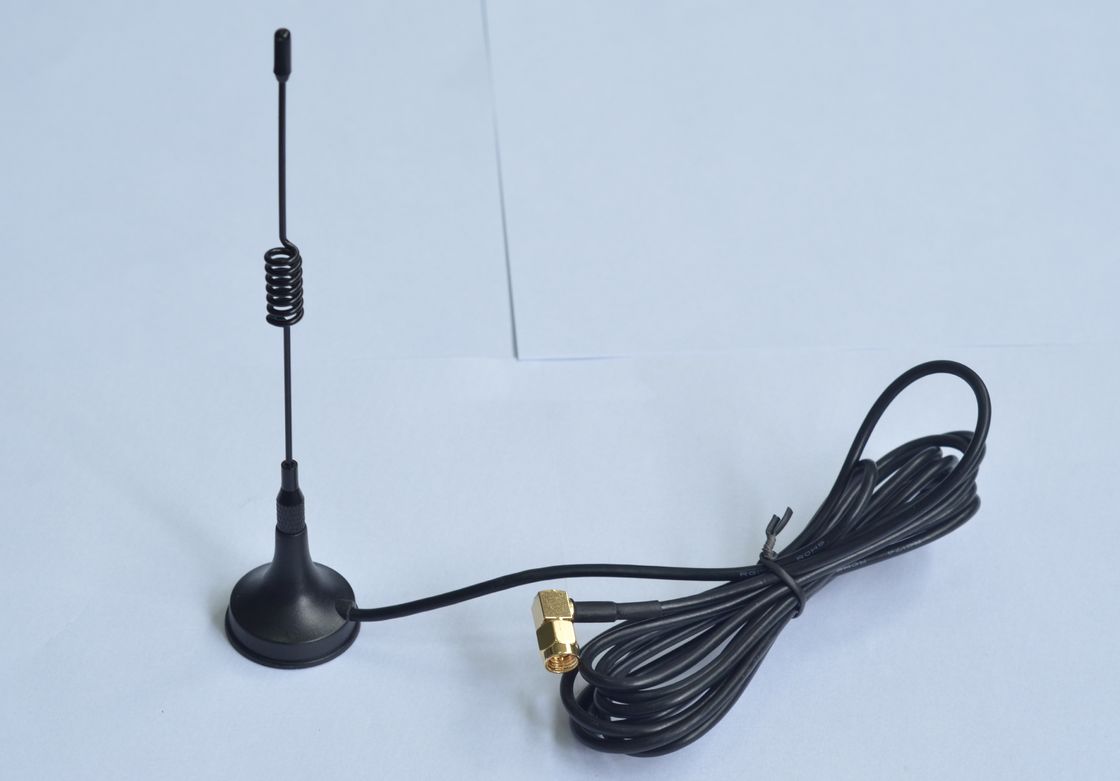

Mobile Base 433 MHz Indoor  UHF Digital TV Antenna Magnetic Mount





Detail Product Description



Frequency: 433 MHz

S.W.R: 2.0 MAX

Impedance: 50 ohm

Return Loss: >=10 dB

Cable: RG 174 Cable

Connector: SMA Male; RP-SMA Male





Application:

  1. Vehicle system
  2. Digital TV system
  3. Intelligent electric meter





Specification



A. Electrical Characteristics

Frequency

433 MHz

Impedance

50 ohm

S.W.R

2.0 MAX

Peak Gain

2 dB

Return Loss

>= 10 dB

B. Material & Mechanical Characteristics

Cable Type

 RG 174 Cable

Connector Type

SMA Male; RP-SMA Male

Pull Test

>= 3.0Kg

C. Environmental



Operation Temperature

- 40 ˚C ~ + 65 ˚C

Storage Temperature

- 40 ˚C ~ +80˚C





Characteristics and Reliability Test



Test Items

Test Condition and Procedure

Requirements

C1

S.W.R.

Set DUT on Network Analyzer;

make individual calibration to test

Directive DUT specification

M1

Vibration

MIL-STD-202G, 201A

Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz

3 directions; 2 hours for each direction

1. No Visual Damage

2. Frequency Tol.<= 5%

M2

Random

Drop

Height: 1.5 Meter;

3 directions; 1 time for each direction

1. No parts separated

2. Frequency Tol.<= 5%

M3

Solderability

MIL-STD-202G, 210F, cond. A

Solder iron: 350±10°C; Duration: 5 seconds

1. Mounted on PCB

2. No Visual Damage

M4

Terminal-

Pull Test

MIL-STD-202G, 211A, cond. A

Holding with individual specification; force applied

to axis of terminal

1. Directive DUT specification

2. Frequency Tol.<= 5%

M5

Dimension

Inspection of dimension, color, material, package,

surface process

Directive DUT specification

E1

Salt Spray

MIL-STD-202G, 101E, cond. B

Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%;

Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E2

Humidity

MIL-STD-202G, 103B, cond. B

Temp: 40°C; RH: >= 95%; Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E3

Thermal Shock

1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes)

Cycles: 24

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E4

Life (High Temp.)

MIL-STD-202G, 108A, cond. A

Temp: 85°C; Time: 96 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

R1

RoHS

With Reference to IEC 62321:2008 with flow chart

Directive RoHS 2002/95/EC

R2

PFOS

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC

R3

PFOA

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC



S Parameter Test Data
