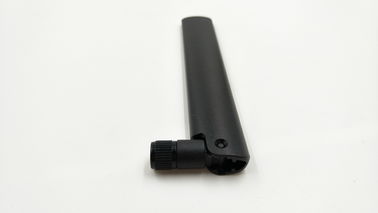

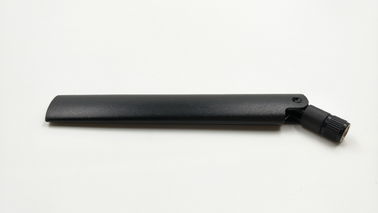

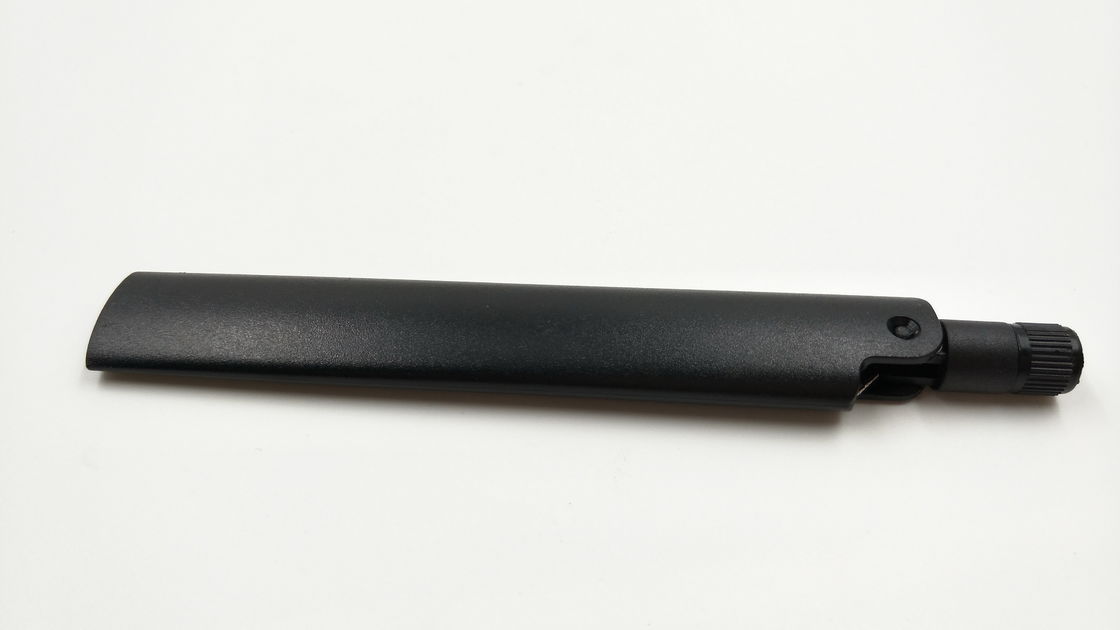

Vertical Polarization Black 4G LTE Omni Antenna For Wireless 3G / 4G Router

All Products

RF Cable Assembly (49)

4G LTE Antenna (29)

Wifi Omni Antenna (39)

3G External Antenna (29)

FRP Fiber Glass Antenna (6)

Magnetic Mount Antenna (7)

Fakra Connector Assembly (15)

WIFI Bluetooth Antenna (13)

Car GPS Antenna (26)

GSM Internal Antenna (10)

Miniature Coaxial Cable (6)

RF Coaxial Connectors (93)

Indoor HDTV Antenna (8)

Many thanks for your kindly supports, sincerely wish have a long cooperation with you in the future.

—— Roger Piltonen

Your products are wonderful and thanks for your best services and helps. Let's move our business forward and have a win-win cooperation together

—— Yaron Wiseman

Contact Now

Detailed Product Description

Frequency:	700 ~ 2700 MHz	S.W.R:	2.0 Max.
Polarization Type:	Vertical	Color:	Black Or White
Maximum Input Power:	10W
High Light:	4G LTE omni antenna , LTE indoor antenna

4G LTE Antenna For Wireless 3G/4G Router Wireless Router RoHS Compliance

Designed for Use with 4G LTE Modules and Devices that Require the Highest Possible Efficiency and Peak Gain to Deliver BEST in Class Throughput on All Major Cellular (2g/3g/4g) Bands Worldwide for Access Points, Terminals and Routers
Frequency Range (MHz):698-960/1710-2170/2500-2700
Wide Band Support: GSM 800/900MHz, 2.4G(WIFI), 3G, 4G LTE
Gain (dBi):5dBi SMA Male connector (with a PIN Inside)
Muhlti-Band, High-Gain Cellular Antenna

Specification

A. Electrical Characteristics
Frequency		700 ~ 2700 MHz
Impedance		50 ohm
S.W.R		2.0 Max.
Peak Gain		2 dB
Return Loss		>= 10 dB
B. Material & Mechanical Characteristics
Cable Type		RG 178 Cable
Connector Type	RP-SMA Male; SMA Male
Body		ABS, Black
C. Environmental
Operation Temperature		- 40 ˚C ~ + 65 ˚C
Storage Temperature		- 40 ˚C ~ +80˚C
