GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black

China GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black supplier
GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black supplier GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black supplier GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black supplier GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black supplier

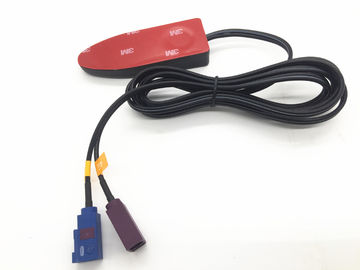

Large Image :  GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: BOGES
Certification: ISO9001,RoHs
Model Number: BGS-GPS+4G-FAKRA-2M

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE Bag/Carton
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 20K per day
Contact Now
Detailed Product Description
Frequency Range: 1575.42Mhz±1.023Mhz Impedance: 50 OHM
S.W.R: 1.5 MAX Amplifiers Gain: 28 DBi
Connector: Fakra C & Fakra D Cable: RG 174 Cable Black
Cable Length: 2 M Working Temp: -40~+85℃
Vibration: Sine Sweep Lg(0~p)10~50~10HZ Each Axis Humidity: 95%~100%RH

GPS + 4G Combine 2 in 1 Antenna With Fakra connector RG174 2M Length





Application



▪ Global Positioning System

▪ GARMIN / Marine Positioning System

▪ GPS / GSM Car Tracking System



Feature



▪ RoHS Compliant

▪ Low V.S.W.R. / Low Loss Design / High Gain

▪ High Efficiency and Sensitivity

▪ Low Loss RF Coaxial Connector Cable Feed

▪ Water Proof Design





Specification



GPS Electrical Specification
Center Frequency (MHz) 1575.42MHZ
Band width (MHz) 10MHZ min (return loss-10dB)
Gain (dBi)

5dBic @zenith

Mounted on 70mmx70mm ground plane

Input Impendence (Ω) 50Ω
V.S.W.R 1.5 MAX
Polarization Intensity R.H.C.P
Axial Ratio

3dB max

Mounted on 70mmx70mm ground plane

Antenna size 25*25*4mm
LNA Specification
Frequency range 1575.42Mhz±1.023Mhz
Gain 28±2dB(+25℃±10℃)
Output VSWR 1.5 MAX
Noise Figure 1.5dB Max(+25℃±10℃)@DC3.3V
DC current TYP 8mA, MAX 12mA@DC3.3V
Main technical specifications
Amplifiers gain 28 dBi
VSWR 1.5 MAX
Working Temp -40~+85℃
Vibration

Sine sweep

Lg(0~p)10~50~10HZ each Axis

Humidity 95%~100%RH
Noise figure (dB) 1.5 max
cable length (mm) 2000±30
connector Fakra



S.W.R



GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black



Radiation Pattern

GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black





Drawing







GPS + 4G Combine 2 In 1 Antenna Fakra Connector RG174 2M Length In Black
