Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable

China Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable supplier
Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable supplier Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable supplier Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable supplier Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable supplier

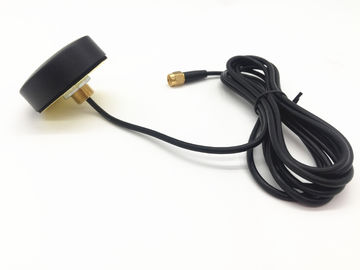

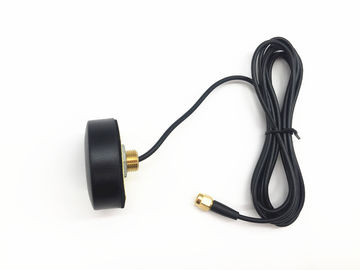

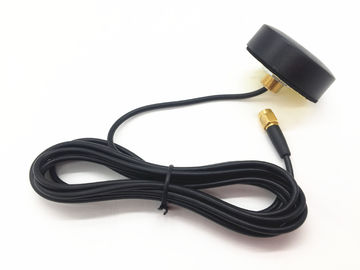

Large Image :  Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: BOGES
Certification: ISO9001,RoHs
Model Number: BGS-MM1575-4615-1M

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE Bag/Carton
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 20K per day
Contact Now
Detailed Product Description
Frequency: 1575.42 MHz Impedance: 50 OHM
S.W.R: 1.5 Max. Peak Gain: 3 DB
Size: 46* 14.5 Mm Cable: RG 174 Cable Black

Active Gps Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable





Dielectric Antenna



Center Frequency(MHz):1575.42±3
VSWR:1.5:1
Bandwidth(MHz):±5
Impedance(Ω):50
Peak Gain >3dBi Based on 7cm×7cm ground plane

Gain Coverage >-4dBi at –90°<0 <+90°(over 75% Volume)

Polarization:RHCP



GSM Antenna



Center Frequency(MHz):850/900/1800/1900

VSWR:2.0:1
Impedance(Ω):50

Typical Gain:2dBi+/-1dBi@850MHz ; 2dBi+/-1dBi@900MHz
1dBi+/-1dBi@1800MHz;1dBi+/-1dBi@1900MHz



LNA/Filter



LNA Gain(Without Cable) :28 dBi Typical

Noise Figure(dB):1.5

Filter Out Band Attenuation (f0=1575.42 MHz)

7dB Min f0+/-20MHz ;
20dB Min f0+/-50MHz;
30dB Min f0+/-100MHz
VSWR <2.0

DC Voltage(V):2.7/3.0/3.3/5.0/3.0 to 5.0 etc.
DC Current (mA):11 Max



Mechanical



Weight(gram )<150

Size(mm):Φ46×14.5
Cable GPS(m):RG174 2,5 long etc.
GSM(m):RG174 2,5 long etc.
Connector GPS:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.
GSM:SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX etc.

Mounting:Screw(Hole/Roof)

Housing:Black



Environmental



Working Temp:-40~+85

Storage Temp:-45~+100

Vibration:Sine sweep 1g(0-p)10~50~10Hz each axis

Humidity:Humidity95%~100%RH

Weatherproof:100%Waterproof



S.W.R



Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable



Radiation Pattern



Active Car GPS Antenna Srcrew Mount 1575MHz With SMA Connector RG 174 Cable
