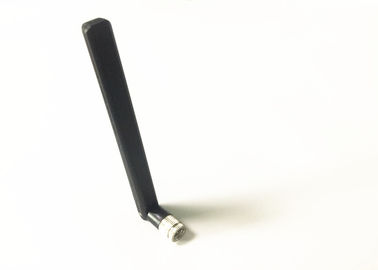

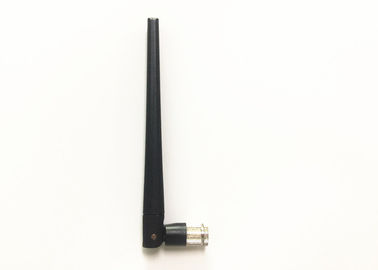

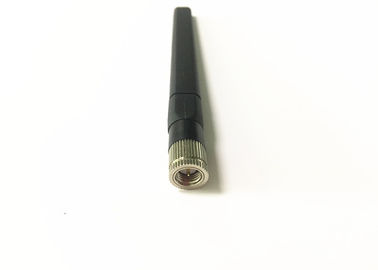

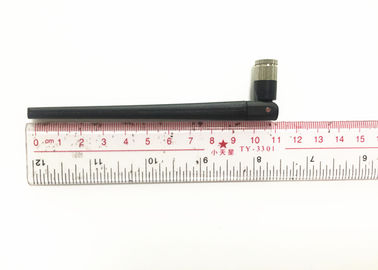

Type E 2dbi High Gain 4g Lte Antenna , 824 - 2700 Mhz Lte Dipole Antenna Wide Band

China Type E 2dbi High Gain 4g Lte Antenna , 824 - 2700 Mhz Lte Dipole Antenna Wide Band supplier
Type E 2dbi High Gain 4g Lte Antenna , 824 - 2700 Mhz Lte Dipole Antenna Wide Band supplier Type E 2dbi High Gain 4g Lte Antenna , 824 - 2700 Mhz Lte Dipole Antenna Wide Band supplier Type E 2dbi High Gain 4g Lte Antenna , 824 - 2700 Mhz Lte Dipole Antenna Wide Band supplier Type E 2dbi High Gain 4g Lte Antenna , 824 - 2700 Mhz Lte Dipole Antenna Wide Band supplier

Large Image :  Type E 2dbi High Gain 4g Lte Antenna , 824 - 2700 Mhz Lte Dipole Antenna Wide Band

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: BOGES
Certification: RoHs
Model Number: BGS-AN4000-10127B

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE Bag / Carton
Delivery Time: 10 Days
Payment Terms: L/C, T/T
Supply Ability: 20K Per Day
Contact Now
Detailed Product Description
Frequency: 824~960MHz; 1447.9~1910MHZ; 1920~2690MHz S.W.R: 2.5 Max.
Impedance: 50 OHM Peak Gain: 2 DBi
Connector: SMA Male Connector Polarization: Vertical
Material Of Radiator: PCB Cable Type: RG-178 Cable



Type E 2dbi High Gain 4g Lte Antenna , 824 - 2700 Mhz Lte Dipole Antenna Wide Band





4G LTE Dipole Antenna Type E 2dbi 824 - 2700 Mhz Wide Band omni antenna​


Detail Product Description

Frequency: 824~ 2700 MHz
S.W.R: 2.5 MAX
Impedance: 50 ohm
Peak Gain: 2 dB
Connector: RP-SMA Male; SMA Male.

Application: Wireless Communication System

Specification



A. Electrical Characteristics
Frequency 824~960MHz; 1447.9~1910MHZ; 1920~2690MHz
S.W.R. <= 2.5
Antenna Gain 2 dBi
Polarization Vertical
Impedance 50 Ohm
B. Material & Mechanical Characteristics
Material of Radiator PCB
Material of Plastic PA66
Cable Type RG-178 Cable
Connector Type SMA Male Connector
Connector Pull Test >=3.0Kg
Connector Torque Test 300~1000 g.cm
C. Environmental
Operation Temperature - 40 ˚C ~ + 65 ˚C
Storage Temperature - 40 ˚C ~ + 80 ˚C



Characteristics and Reliability Test


Test Items Test Condition and Procedure Requirements
C1 S.W.R. Set DUT on Network Analyzer; make individual calibration to test Directive DUT specification
C2

Antenna
Gain

Set DUT on Antenna Chamber; make individual calibration to test Directive DUT specification
M1 Vibration

MIL-STD-202G, 201A
Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz
3 directions; 2 hours for each direction

1. No Visual Damage
2. Frequency Tol.<= 5%

M2

Random
Drop

Height: 1.5Meter;
3 directions; 1 time for each direction

1. No parts separated
2. Frequency Tol.<= 5%

M3 Solderability

MIL-STD-202G, 210F, cond. A
Solder iron: 350±10°C; Duration: 5 seconds

1. Mounted on PCB
2. No Visual Damage

M4

Terminal-
Pull Test

MIL-STD-202G, 211A, cond. A
Holding with individual specification; force applied
toaxis of terminal

1. Directive DUT specification
2. Frequency Tol.<= 5%

M5 Dimension

Inspection of dimension, color, material, package,
surface process

Directive DUT specification
E1 Salt Spray

MIL-STD-202G, 101E, cond. B
Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%;
Time: 48 hours

After 2 Hours Recovery
1. No Visual Damage
2. Frequency Tol.<= 5%

E2 Humidity

MIL-STD-202G, 103B, cond. B
Temp: 40°C; RH: >= 95%; Time: 48 hours

After 2 Hours Recovery
1. No Visual Damage
2. Frequency Tol.<= 5%

E3 Thermal Shock

1 Cycle: - 40°C(30 minutes) to + 80°C (30 minutes)
Cycles: 24

After 2 Hours Recovery
1. No Visual Damage
2. Frequency Tol.<= 5%

E4 Life(High Temp.)

MIL-STD-202G, 108A, cond. A
Temp: 85°C; Time: 96 hours

After 2 Hours Recovery
1. No Visual Damage
2. Frequency Tol.<= 5%

R1 RoHS With Reference to IEC 62321:2008 with flow chart Directive RoHS 2002/95/EC
R2 PFOS With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC
R3 PFOA With Reference to USA EPA 3540C:1996 by LC/MS Directive RoHS 2006/122/EC





Antenna - S Parameter Test Data


Test Items Requirements No.1 No.2 No.3 No.4 No.5
C1 S.W.R TBD ok ok ok ok ok
C2 Insertion Loss TBD ok ok ok ok ok
C3 Voltage Breakdown > 500V > 500 > 500 > 500 > 500 > 500
C4 Insulation Resistance > 500 Mohm > 500 > 500 > 500 > 500 > 500
M4 Pull Force Spec ok ok ok ok ok
M6 Dimension drawing ok ok ok ok ok





Testing Show
