TNC Female To MMCX Right Angle Rf Coaxial Cable Assembly RG 178 50 OHM

China TNC Female To MMCX Right Angle Rf Coaxial Cable Assembly RG 178 50 OHM supplier

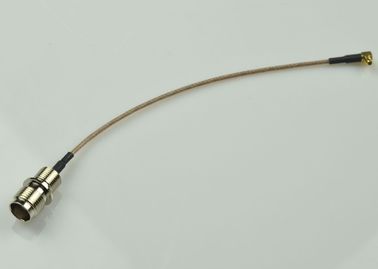

Large Image :  TNC Female To MMCX Right Angle Rf Coaxial Cable Assembly RG 178 50 OHM

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: BOGES
Certification: RoHs
Model Number: BGS-TNC-178-MMCX-L

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: PE Bag / Carton
Delivery Time: 15 Days
Supply Ability: 10K Per Day
Contact Now
Detailed Product Description
Frequency: 0~3 GHz Impedance: 50 OHM
S.W.R: 2.0 Max. Cable: RG178 Cable Brown
Connector: TNC Connector Female; MMCX Male
High Light:

hirose cable assembly

,

custom rf cable assemblies

TNC Female To MMCX Right Angle RF Cable Assembly RG 178 Coaxial Cable





Detail Product Description



Frequency: 0 ~3 GHz

S.W.R: 2.0 Max.

Impedance: 50 ohm

Cable: RG 178 Cable, Brown

Connector: TNC Connector Female; MMCX Connector



Application:



1. Wireless industries

2. Communication equipment

3. Base stations

4. Telecom

5. Test and measurement



Specification



A. Electrical Characteristics

Frequency

DC ~ 3 GHz

Impedance

50 ohm

S.W.R

2.0 MAX @ 0~1GHz

Return Loss

>=10dB

Insertion Loss

<=1.5dB

B. Material & Mechanical Characteristics

Cable Type

RG 178 Cable

Connector Type

TNC Connector Female Straight, MMCX Male

Pull Test

>= 3.0Kg

C. Environmental



Operation Temperature

- 40 ˚C ~ + 65 ˚C

Storage Temperature

- 40 ˚C ~ +80˚C



Characteristics and Reliability Test

Test Items

Test Condition and Procedure

Requirements

C1

S.W.R.

Set DUT on Network Analyzer; make individual calibration to test

Directive DUT specification

M1

Vibration

MIL-STD-202G, 201A

Amplitude: 0.03 inch (0.76mm); Freq: 10 to 55 Hz

3 directions; 2 hours for each direction

1. No Visual Damage

2. Frequency Tol.<= 5%

M2

Random

Drop

Height: 1.5 Meter;

3 directions; 1 time for each direction

1. No parts separated

2. Frequency Tol.<= 5%

M3

Solderability

MIL-STD-202G, 210F, cond. A

Solder iron: 350±10°C; Duration: 5 seconds

1. Mounted on PCB

2. No Visual Damage

M4

Terminal-

Pull Test

MIL-STD-202G, 211A, cond. A

Holding with individual specification; force applied

to axis of terminal

1. Directive DUT specification

2. Frequency Tol.<= 5%

M5

Dimension

Inspection of dimension, color, material, package,

surface process

Directive DUT specification

E1

Salt Spray

MIL-STD-202G, 101E, cond. B

Temp: 35°C; RH: >= 95%; NaCl solution: >= 5%;

Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E2

Humidity

MIL-STD-202G, 103B, cond. B

Temp: 40°C; RH: >= 95%; Time: 48 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E3

Thermal Shock

1 Cycle: - 40°C (30 minutes) to + 80°C (30 minutes)

Cycles: 24

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

E4

Life (High Temp.)

MIL-STD-202G, 108A, cond. A

Temp: 85°C; Time: 96 hours

After 2 Hours Recovery

1. No Visual Damage

2. Frequency Tol.<= 5%

R1

RoHS

With Reference to IEC 62321:2008 with flow chart

Directive RoHS 2002/95/EC

R2

PFOS

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC

R3

PFOA

With Reference to USA EPA 3540C:1996 by LC/MS

Directive RoHS 2006/122/EC
