| Frequency: | 1575.42 MHz | Impedance: | 50 OHM |
|---|---|---|---|
| S.W.R: | 1.5 Max. | Peak Gain: | 4 DB |
| Connector: | SMA Male; RP-SMA Male | Cable: | RG 174 Cable Black |
| High Light: | vehicle gps antenna,gps internal antenna |
||

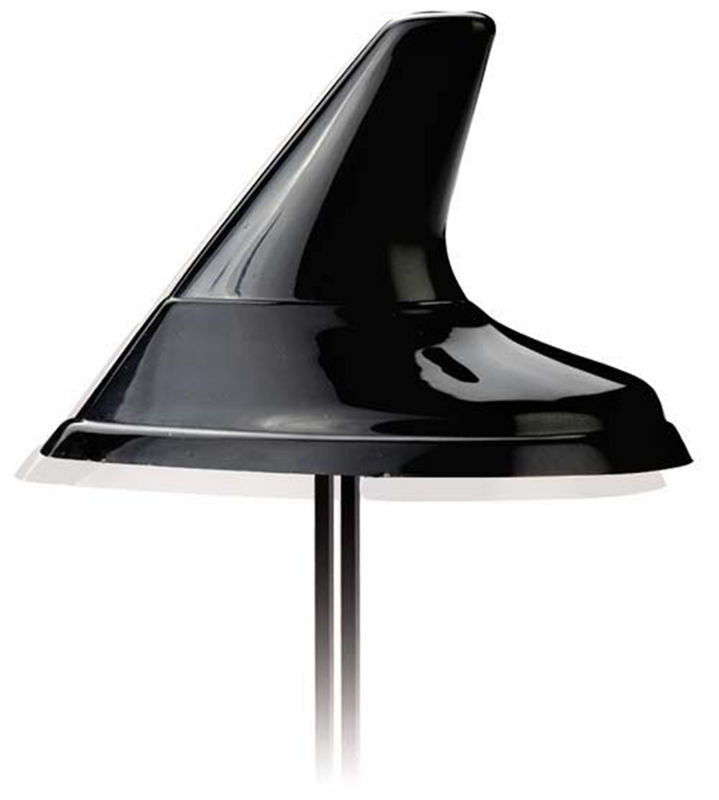

Roof Mount Car GPS Antenna With RoHS Compliant , High Sensitivity
Feature
▪ RoHS Compliant
▪ Low V.S.W.R. / Low Loss Design / High Gain
▪ High Efficiency and Sensitivity
▪ Low Loss RF Coaxial Connector Cable Feed
▪ Water Proof Design
Application
▪ Global Positioning System
▪ GARMIN / Marine Positioning System
▪ GPS / GSM Car Tracking System
Detail Product Description
Type 25x25 Ceramic Antenna
▪ Frequency : 1575.42 ±5 MHz
▪ Polarization : Right Hand Circular Polarization
▪ S.W.R. : <= 1.5 ▪ Gain : 4dBic @ 0 deg.
Amplifier / Filter
▪ Gain : 18 dB (typical) ▪ Noise Figure : 1.5 dB
▪ DC Voltage : 3 ~ 5 V ▪ DC Current : 5 ~ 10m A
GSM Quad-Band Antenna
▪ SWR : <=2.0 @ 824-960 &1710-1990 MHz
▪ Gain : 2 & 2 dBi
Mechanical / Environment
▪ Connector : SMA/FME/MMCX/BNC/FAKRA
TNC/MCX/SSMB/SMB/SMC
▪ Cable : RG-174 // 5000 mm
S.W.R
Radiation Pattern
Drawing
