Multi Band GPS GSM Combined Antenna for Car With Fakra Connector

China Multi Band GPS GSM Combined Antenna for Car With Fakra Connector supplier

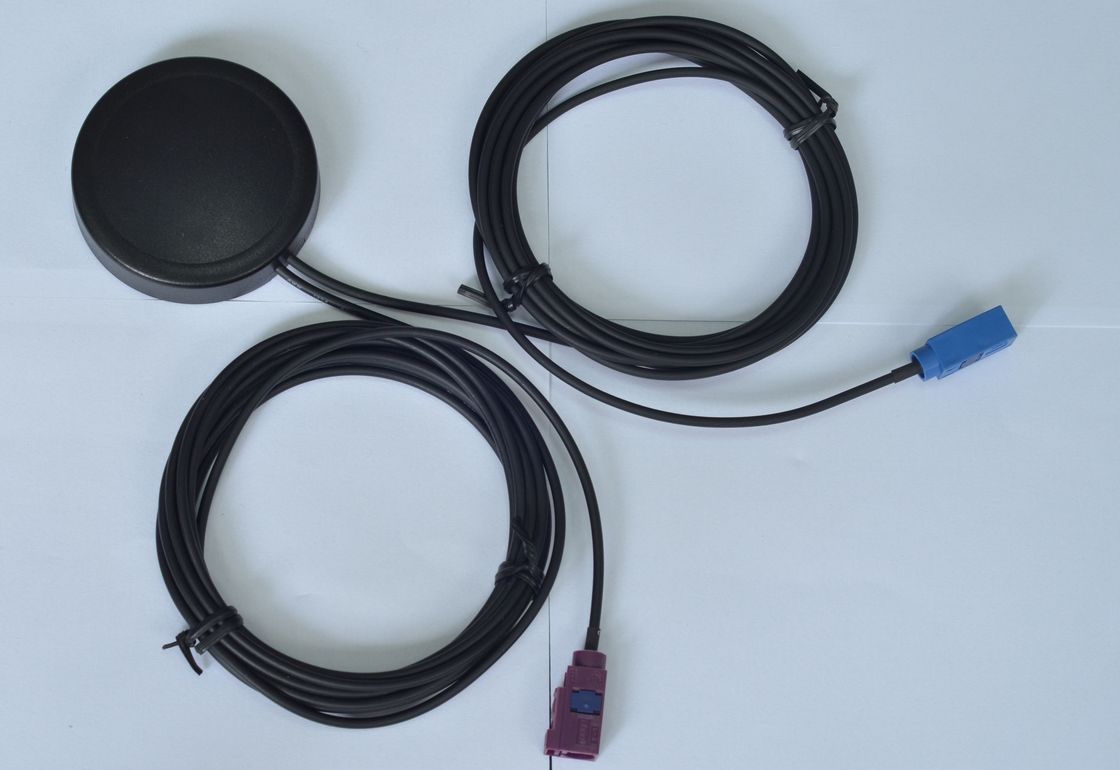

Large Image :  Multi Band GPS GSM Combined Antenna for Car With Fakra Connector

Product Details:

Place of Origin: Dongguan, Guangdong, China
Brand Name: Boges
Certification: ISO9001,RoHs
Model Number: BGS-MM15300-8015B-L

Payment & Shipping Terms:

Minimum Order Quantity: 200
Packaging Details: PE Bag/Carton
Delivery Time: 10 days
Payment Terms: T/T
Supply Ability: 20K per day
Detailed Product Description
Frequency: 1575.42 MHz; 824 960 1800 1900mhz Impedance: 50 OHM
S.W.R: 2.0 Max. Peak Gain: 2 DB
Connector: Fakra Connector Code C Cable: RG 174 Cable Black

Multi Band GPS GSM Combined Antenna for Car With Fakra Connector





Specifications



GPS/GSM Antenna


1. Dual Band GPS: 1575.42 MHz
2. GSM: 824 960 1800 1900 MHz
3. Connector: FAKRA Connector
4. Cable: RG 174 Cable



1) Electrical Characteristics( GPS/GSM combo antenna)



This very low profile antenna is ground plane independent and can be mounted on metal(magnetic). The flat design protects against vandalism.Application examples: On dashboard of trucks or cars,Behind windows of trucks or cars other antenna.



FAKRA Code C and Code D for car





2) Key Specifications/Special Features:





(1) Dielectric Antenna



Center Frequency: 1575.42 MHz±3 MHz

V.S.W.R: 1.5:1

Band Width(MHz ): ±5

Impedance: 50 ohm

Polarization Type: R.H.C.P





(2) LNA/Filter



LNA Gain(w/o cable): 30 dBi Typical

Noise Figure: 1.5 dB

DC Voltage: 2.2~5 V

DC Current: 5~15 mA





(3) GSM Antenna



Frequency Range: 824~894 MHz/1710~1990 MHz

                                  880~960 MHz/1710~1990 MHz

V.S.W.R: 2.0:1

Impedance: 50 ohm

Typical Gain(w/o cable): 2 dBi

Polarization Type: Vertical or Horizontal



(4) Mechanical



Size(mm): D78*15

Mounting: Magnetic/Adhesive/Screw

Housing: Black

Optional Connectors:SMA/MCX/SMB/BNC or others





(v) Environmental



Working Temp.: -40°C~+85°C

Humidity: 55%~75%RH

Waterproof: IP67
